Description
Type: Modular

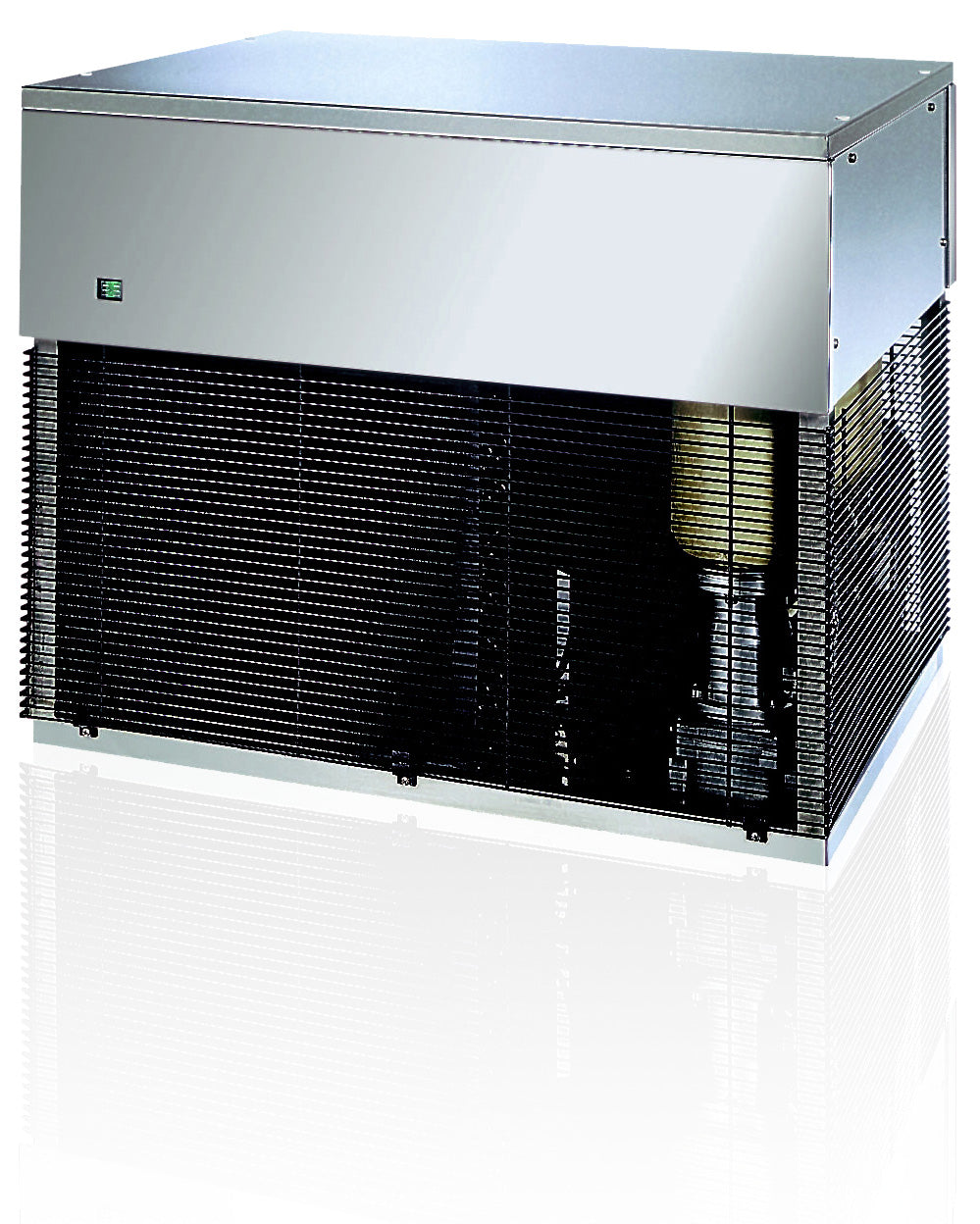

Item: Ice Maker Granular Ice
Model Code: DCG500A
Water Inlet Connection: 3/4
Ambient Air Operating Temperatures: Min +10°C Max: +43°C
Waste Connection: 21mm
Icemaker Ventilation: Rear: 200 mm / Sides and top: 50 mm
Water Temperature: 3 - 32ºC
Water Inlet Pressure: 1 bar (14psi) / 6 bar (84psi)
Power: 32amp
Width(mm): 640
Depth(mm): 470
Height(mm): 700
Ice Maker: Production (Kg) Per Hours: 510
Warranty: 3 Year
Modular ice systems have a separate production and ice storage unit (or ice bin). Modular ice production volume starts from 90kg/24hrs and goes up to 1000kg/24hrs. Ice storage units vary from 100kg to 350kg capacity. Granular Ice - Similar to crushed ice, it’s softer than cubes and chewable, while its mouldable properties suit displays or packaging applications. Suitable for: cocktails, cafeterias, healthcare industries, care homes, fast-food outlets, educational facilities, hotels, fishmongers, supermarkets, transport and packaging operations.
Properties
- Pebble ice – 91% dry
- AISI 304 SS Scotch Brite finish
- Tropical class +43°C
- Specific volume 1 m3 = 550 kg of ice
- Removable and cleanable air filter
- AISI 304 SS evaporator
- Air or water cooling system
- Easy cleanable internal rounded surfaces
- Dust-proof water basin
- Electromechanical operation
- ON-OFF rocker switch
- Automatic water charge
- Rotation sensor on low speed shaft
- Standard and special voltages
- Frame in INOX
Technical information
- Cooling system A – W
- Refrigerant R452A
- Standard voltage 400-415 V ~ 3N 50 Hz
- Fuse 10 A
- Finish AISI 304 stainless steel, scotch brite
Ideal conditions
- Ambient temperature +10°C/+50°F to +43°C/110°F
- Water temperature +3°C/+37°F to +32°C/+90°F
- Voltage -10% to +10%
- Water inlet pressure
- 1bar (14 psi) to 6bar (84 psi)
